原装利莱森玛LEROY SOMER/NIDEC数字自动电压调节器D550销售及其接线说明指导

智来机电为您提供利莱森玛（leroysomer-nidec）、卡特彼勒、威尔逊全系列发电机整机及配件供应，如有需要可以联系联系，如有技术支持，欢迎电话或者Email联系。

电话-微信-What'sApp：+8615960117541  Email：313689345@qq.com

利莱森玛电压调节器D550_LEROY SOMER D550_NIDEC Digital AVR D550_利莱森玛D550、NidecD550，自动电压调节器D550，稳压器D550，历来森马D550，历来森马电调板D550，Leroy somer D550

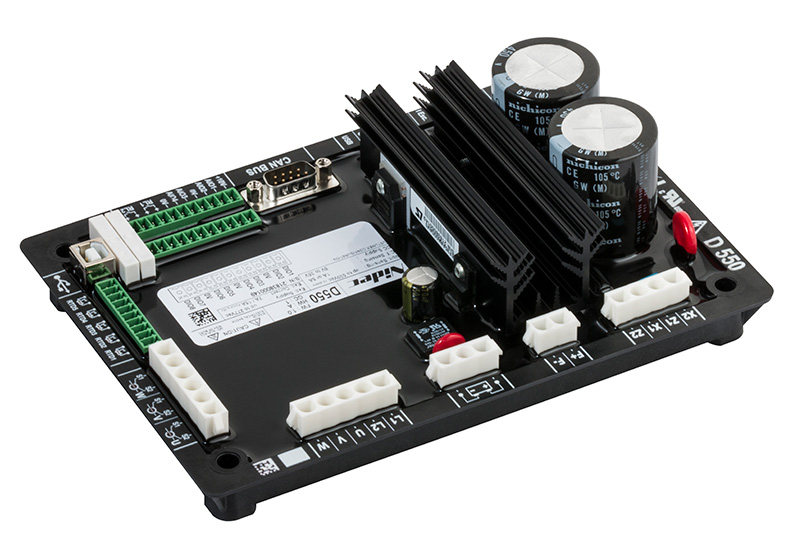

The D550 digital automatic voltage regulator (AVR) provides excitation current up to 7 A with excellent reliability and precision for SHUNT, permanent magnet (PMG) or AREP (auxiliary winding) excitation types.

D550 includes advanced protections such as over-excitation limitation and voltage sensing loss, and also features voltage droop for genset parallel operation. The D550 is also equipped with a Load Acceptance Module (LAM) to handle load impact events.
The D550 AVR is also optimized for grid paralleling operation, and complies with the latest grid code regulations, including the latest German grid code regulations VDE 4110 and VDE 4105. In this context, the D550 also includes active & reactive reverse power alarms.
Key specifications
Technology Digital
Excitation mode SHUNT, AREP, PMG
Rated excitation current 7 A
Regulation accuracy (+/- %) 0.25 %
Frequency range 10 – 400 Hz
Voltage setting range (+/- %) 30 %
kU/F limitation 0.5 < k< 3
Loss of sensing voltage ✓
Over-excitation limitation ✓
Short circuit current limitation ✓
Voltage droop ✓
Parallel operation between alternators ✓
Load Acceptance Module (LAM) ✓
